On-Site Disinfection • Zero Chemical Transport Hazard

Electro-Chlorination & On-Site NaOCl Systems

On-site sodium hypochlorite generation from seawater or salt brine for safe, chemical-free, zero-hazard water disinfection with low operational cost.

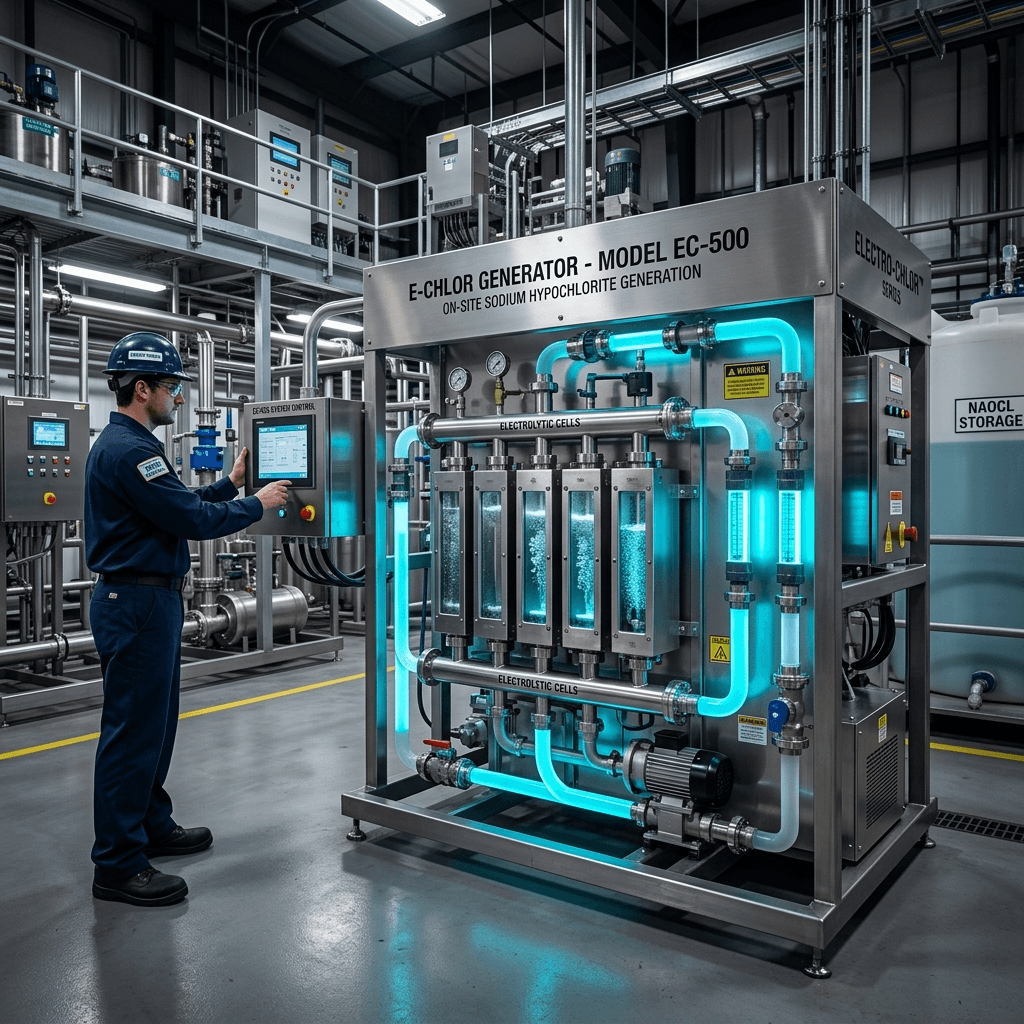

Electro-Chlorination Electrolytic Cell Unit

Engineering Capabilities & Technology


BEYOND Electro-Chlorination systems eliminate the transport, handling, and storage hazards associated with chlorine gas cylinders or commercial sodium hypochlorite. Using only raw salt (NaCl) and electricity, the system produces a non-hazardous 0.8% NaOCl solution on demand.


Key System Features:

  • High-efficiency noble metal MMO titanium anode electrolyzers.
  • Generates non-hazardous 0.8% NaOCl solution (below 1% transport hazard threshold).
  • Automated brine preparation, dilution, and electrolytic cell voltage monitoring.
  • Integrated forced-air hydrogen degassing blowers for cell safety.
  • PLC controlled dosing pumps with continuous residual chlorine feedback.

Technical Reference

NaOCl Concentration0.8% Non-Hazardous
Power Efficiency3.5 kWh / kg Cl₂
Anode CoatingPrecious MMO Titanium
Anode Cell Life5+ Years Warranty
Safety SystemForced Air H₂ Degasser
Control UnitSiemens / Schneider PLC
